Want To Have A More Appealing Ball Joint Separator? Read This!

What is a ball joint separator

A ball joint separator is a tool that helps to open the stubborn ball joint. The ball joint separator is inserted between the two parts of the joint to allow the pieces to separate freely and generally divided into fork type and lever-type separator.

The ball joint binds the suspension together by fastening the spindle to the control arm. Over time, the ball joints wear out and may cause vibration or sound ingress when driving on rough roads. If they fail, it may cause the wheels to separate from the vehicle, damaging your vehicle and suspension. Ball joint removal requires a specific ball joint tool to do the job correctly.

Learn about the different types of ball joint tools

As the saying goes, "Do the right thing with the right tools", using the wrong tool will not only make the job more challenging but also create unsafe conditions and damage your parts. Sometimes, there are several tools available for a task, so it is difficult to find out which is the better choice. We will discuss five standard ball joint tools that can be used to separate the ball joint from the spindle.

Some of the tools are very simple, others are more complex, and the deviceyou you use often depends on the task at hand.

(1) Hammer

It sounds crazy, hammer out the joint, don't mess around trying to wave a sledgehammer in a small space, switch to a ball joint separator, ball joint separator to make the job safe and easy.

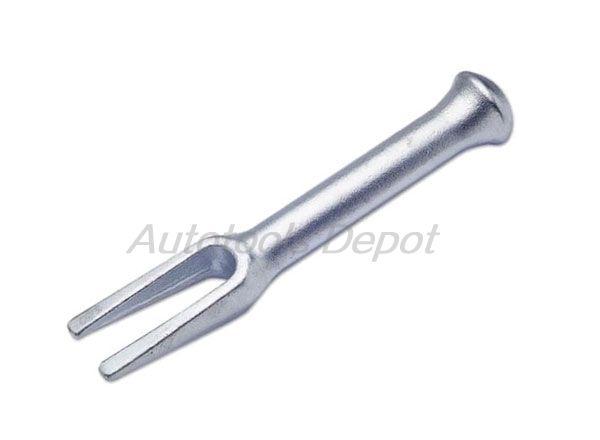

(2) Pickle fork

Separate ball joints and tie rods quickly and easily without damage. Simply position the tool and strike with a hammer. The separator is zinc plated to resist rust and quality drop forged for added durability.

feature：

Quality drop forged to withstand hard use

Zinc plated to resist rust

Knurled grip handle

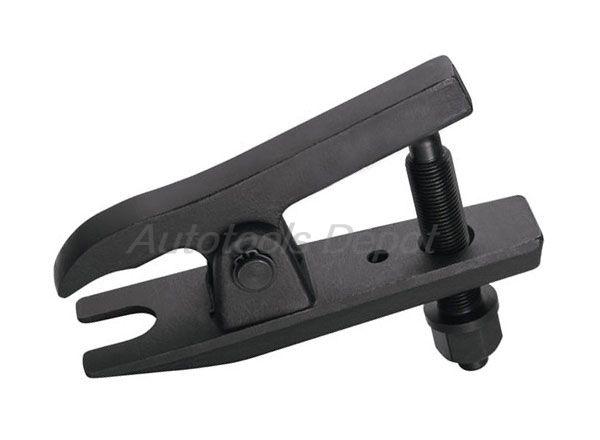

（3）universal ball joint separator

The Universal Ball Joint Tie Rod Separator Puller Extractor Removal Tool  is designed to separate the ball joint from the spindle support arm. The separator is adjustable to fit different size ball joints. This tool can be used for cars and trucks, also can be used for ball pivots on tie rods and stabilizers. Capacity up to 56mm by reversing the bottom part of the tool, wide clamping range due to the infinite variations of the joint.

Features:

The tool can be used for passenger cars and trucks

For separating the ball joint from the spindle support arm

Adjustable for different size ball joints

Two center joint positions for 1-1/8" or 2-1/8", 30mm or 56mm maximum opening capacity

22mm-18mm ball joint slot applicable for domestic and import cars

（4）Ball Joint Press

Professional tools are ball joint presses. This is a more complex claw press version. This tool uses a flip-flop and adapter to ensure that the ball joint is removed cleanly and safely from the control arm. The connectors will also remain reusable. The problem with this type of tools is that they are expensive;

As with any suspension, be very careful to ensure that the vehicle is safely raised from the ground and using a jack bracket. Safety is essential when it comes to coil springs and do not release tension on coil springs without proper safety precautions.

（5）3/4-inch ball joint separator

This ball joint separator eliminates the hassle of removing the ball joint from the car! This spherical connector separator is a durable heat-treated steel structure and is suitable for maintenance of a variety of domestic and international front-wheel drive vehicles.

Features include removable pins that can be inserted into two pivot points for versatility. This high-quality ball joint separator is essential for automotive mechanics and car enthusiasts, and it can be easily loosened and removed for replacement and repair!

Features:

Suitable for many domestic and imported front-wheel drive vehicles

Removable pins fit for two pivot points for versatility

Durable heat-treated steel structure

Opening is 3/4 inch

Accept 3/4-inch socket scases or wrenches

how to use a ball joint separator

（1）First remove the fixing pin from the ball joint.

（2）Then, use a wrench to undo the castle nut to the end of the thread, making sure that it is not removed completely.

（3）Apply a drop of grease to the fork of the ball joint separator.

This is to protect the rubber boots on the ball joint from damage.

（4）Next, slide the splitter of the separator between the ball joint and the ball joint and the part that separates from the bottom of the jaw to the center of the cup.

Using a 23mm socket or wrench, tighten the bolts of the ball joint separator until the ball joint breaks freely.

（5）The castle nut can now be safely removed from the steering arm and the ball joint/stick end is removed from the suspension.

Free your hands and vehicle from the damage and forget the hammer used to separate the ball joint. For all your spherical separators, buy AUTO TOOL DEPOT, We also offer hand-claw hydraulic ball joint separators and some special ball joint tools to make it easier for you to do the right thing.
